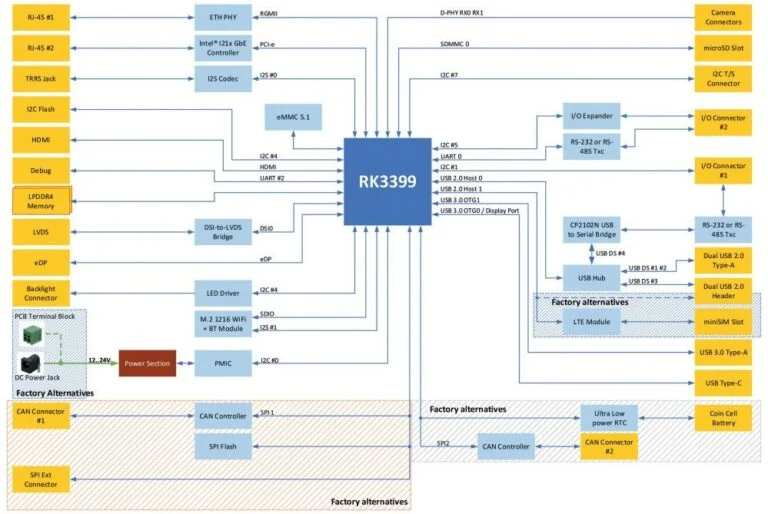

1. Overview: RK3588 Audio Subsystem & common codec setups

RK3588 AD520688 Codec调试: The Rockchip RK3588 is a powerful SoC that provides multiple digital audio interfaces (I²S/PCM, TDM, PDM), hardware codecs interfaces, and support in Linux for codec drivers via ALSA ASoC (ALSA System on Chip) framework. The SoC exposes audio endpoints such as I2S, PCM (SNDCPM/DAI), PDM for microphones, and master/slave clocking options. The RK3588 datasheet and developer resources are the definitive reference for pinouts, audio blocks, and supported data formats.

In many RK3588 designs you’ll find either:

• An external I²C/I²S audio codec IC (e.g., TI, Cirrus Logic, Wolfson, Analog Devices) connected to the SoC’s I²S/TDM pins — this is the typical “codec” that needs device tree entries and an ASoC driver, or
• A digital audio bridge (AFE) or integrated codec on a carrier board (some SBC vendors provide board-specific drivers).

Important: if the part you meant by “AD520688” is an external codec, confirm the real vendor part number and datasheet before applying voltage or enabling clocks — incorrect assumptions can damage hardware.

2. Anatomy of an ASoC codec stack on RK3588 (what to check first)

To debug codec problems, understand the typical ASoC topology:

• CPU DAI (Digital Audio Interface) — the RK3588 SoC DAI representing I²S/TDM ports.
• Codec DAI — the external codec driver that registers a DAI with the ASoC core.
• AIF/PLATFORM driver — board glue code or machine driver that ties CPU DAI and codec DAI together (or Device Tree bindings).
• Codec controls — mixer controls exposed by the codec driver via ALSA (volume, paths, mutes).
• User space — ALSA tools (aplay, arecord, alsamixer), PulseAudio/pipewire.

Key items to verify:

• Device Tree entries for the CPU DAI and codec (clocking, phasing, DAIs, bus addresses).
• Kernel driver: codec driver must be present and enabled in the running kernel (either built-in or module).
• Clocking: codec master clock (MCLK), bit clock (BCLK), and frame sync (LRCLK) must match both sides.
• GPIOs & reset: hardware reset lines and power supplies must be applied correctly.

Useful RK3588 reference (audio section).

3. Practical step-by-step debugging checklist (quick wins)

Follow these checks in order — each step rules out a whole class of problems.

1) Confirm physical connections & power

• Verify VDD/VREF rails for the codec are present with a multimeter.
• Confirm I²C/SPI address (use a logic analyser or i2cdetect if supported).
• Ensure reset and HP/Jack detect GPIOs are asserted correctly.

2) Serial console & boot logs

• Connect to the RK3588 serial debug port and reboot.
• Check kernel boot log: dmesg | grep -i sound\|audio\|codec\|snd\|ASoC
  • Look for lines like “ASoC: registered ASoC” or errors “failed to register codec”.
• If the codec driver binds to an I²C address, you should see probe messages. Example: yamlCopyEdit[ 3.456789] i2c i2c-3: probe result for 0x1a: okay [ 3.457012] wm8960 1-001a: Linked as a consumer to regulator.0 [ 3.457345] wm8960 1-001a: ASoC: wm8960 <-> rk3588-i2s mapping ok

3) Check I²C device presence

• On the target: i2cdetect -y -r <bus> (if i2c-tools available).
• Example: i2cdetect -y -r 3 — ensure the expected address responds.

4) Check ALSA devices

• aplay -l and arecord -l should show an snd_rk3588 or board-specific card and PCM devices.
• If no cards appear, the issue is likely device tree or driver probe related.

5) Verify clocks & formats

• Confirm MCLK present (oscilloscope or logic analyser). Many codecs require an MCLK (e.g., 12.288 MHz for 48 kHz, 11.2896 MHz for 44.1 kHz) or can derive from BCLK depending on design.
• Check device tree sound node for clocks properties and correct sysclk values.

6) Try a loopback test

• If codec has a loopback function (hardware or echo cancellation path), enable it and run arecord | aplay locally to verify data path.

7) Enable verbose kernel logs for sound

• echo 'module snd_soc_core +p' > /sys/kernel/debug/dynamic_debug/control
• dmesg -w and re-trigger probe to capture more details.

4. Device tree & kernel tips — the common failure points

Most RK3588 audio issues boil down to incorrect device tree bindings or mismatched DAI formats.

Device Tree points to check

• sound node: ensure cpu-dai and codec nodes exist with correct phandle references.
• For codec node: correct compatible string (driver match), reg address (I²C), and clock properties.
• CPU DAI node should match RK3588 pinmux and the correct rockchip,daudio or rockchip,i2s compatible string.
• Typical properties: dtsCopyEdit&i2s0 { status = "okay"; pinctrl-0 = <&pinctrl_i2s0>; assigned-clocks = <&cru SCLK_I2S0_OUT>; assigned-clock-rates = <12288000>; /* optional */ ... }; codec@1a { compatible = "ti,tlv320aic", "simple-audio-card"; reg = <0x1a>; clocks = <&cru SCLK_CODEC>; ... }; sound { compatible = "simple-audio-card"; simple-audio-card,format = "i2s"; simple-audio-card,cpu { sound-dai = <&i2s0>; }; simple-audio-card,codec { sound-dai = <&codec>; }; };
• Use mainline kernel bindings where possible. Collabora and Rockchip upstream work has recent patches for RK3588 audio components (see Collabora/upstream notes for RK3588 progress).

DAI format mismatches

• Ensure both CPU and codec agree on:
  • clock master/slave roles,
  • bitclock polarity (normal/inverted),
  • frame format (I²S / left-justified / right-justified),
  • sample width (16/24/32 bits),
  • channels (stereo / TDM slots).

If you set the codec as master but the RK3588 CPU expects to be master, audio won’t clock and you’ll see no activity.

Kernel config / drivers

• Confirm codecs (e.g., CONFIG_SND_SOC_WM8960) are enabled or compiled as modules.
• Check lsmod | grep snd for loaded modules. If driver missing, build kernel with required codec driver or load module.

5. Hands-on debugging commands, tools and traces

These are the tools and commands that will help you isolate issues faster.

1) Serial log + dmesg

• dmesg | grep -i snd or dmesg | grep -i asoc
• Look for probe failures, regulator errors, or clock setup failures.

2) ALSA utilities

• aplay -l and arecord -l — lists playback/capture devices.
• aplay -D hw:0,0 tone.wav — play sample directly to hardware.
• arecord -f S16_LE -r 48000 -c 2 test.wav — capture raw input.

3) alsamixer / amixer

• alsamixer -c 0 — check mixer controls (capture/mic gain, ADC/DAC mutes).
• amixer contents — inspect controls programmatically.

4) Check driver binding

• cat /sys/bus/i2c/devices/3-001a/driver — confirm codec driver is bound to the i2c device.
• If the driver isn’t bound, check dmesg for probe failures and verify compatible strings.

5) Enable dynamic debug / trace

• echo 'file snd_soc_core.c +p' > /sys/kernel/debug/dynamic_debug/control
• Use trace-cmd or ftrace to instrument functions in snd_soc_* modules.

6) Logic analyser / scope

• Observe BCLK/LRCLK/MCLK on the physical lines to ensure the codec and SoC are moving bits.
• If you see MCLK present but no BCLK, the SoC may be in the wrong mode.

7) I2C verification

• i2cdump -y 3 0x1a (careful with writeable parts) — read codec registers to confirm expected values.

8) ASoC debugfs

• ls /sys/kernel/debug/asoc/ — examine registered cards, components, and widgets.
• Inspect cards/card0 (or similar) for detailed ASoC widget/route information.

6. Common problems & worked examples (real-world fixes)

Below are typical symptom → cause → fix patterns.

Symptom: No audio playback, aplay returns silence

• Cause: no PCM device or driver not bound.
• Fix: Check aplay -l; if missing, ensure device tree sound node and kernel codec driver present. Verify i2cdetect shows codec.

Symptom: Intermittent crackling or pops

• Cause: Clock mismatch (wrong MCLK or BCLK ratio) or low system performance.
• Fix: Verify clock frequencies; set sysclk in codec DT or driver to supported MCLK. Try increasing ALSA buffer size in aplay (-B and -F).

Symptom: Microphone capture not working

• Cause: ADC path muted or wrong input mux.
• Fix: Use alsamixer to unmute capture and set ADC gain. Check codec regs via i2cdump to confirm input selection.

Symptom: Codec driver fails to probe with regulator errors

• Cause: Missing regulator setup in DT (VDD not present).
• Fix: Add/regulator phandles in DT or enable PMIC/regulator driver.

Worked Example: Enabling WM8960 on RK3588 board

• Add DT nodes for i2s0, wm8960@1a with reg = <0x1a>.
• Build kernel with CONFIG_SND_SOC_WM8960=y.
• On boot, check dmesg — should show wm8960 1-001a: wm8960....
• After binding, run aplay -l to confirm PCM presence.

Appendix: resources, references, and further reading

• RK3588 Brief Datasheet — shows audio interfaces and recommended clocks
• RK3588 Technical references & community repos — useful for TRM and board examples (FanX-Tek / GitHub).
• Mainline RK3588 upstream status — Collabora & kernel patch logs (rkvdec2 driver and audio-related kernel patches).
• ASoC device tree binding docs — find canonical DT bindings under Documentation/ in kernel sources for sound and codec entries. (Search kernel docs for simple-audio-card binding.)
• ALSA utilities — aplay, arecord, alsamixer, amixer — essential for testing and controlling mixers.

Final notes & troubleshooting checklist (quick copy)

• Confirm part number: if “AD520688” is the actual codec, please supply the datasheet. I couldn’t find it in public sources; without a datasheet, pinout and register maps are unknown. (Search attempts returned no authoritative results.)
• Use dmesg + i2cdetect + aplay -l as first triage tools.
• Validate device tree: sound node, CPU DAI, codec node, compatible string.
• Check clocks: MCLK/BCLK/LRCLK must be present and correct.
• Confirm kernel driver presence (module or built-in).
• Use logic analyser when clocks/data are ambiguous.
• For persistent upstream issues, consult Rockchip and Collabora notes on RK3588 mainline progress.
